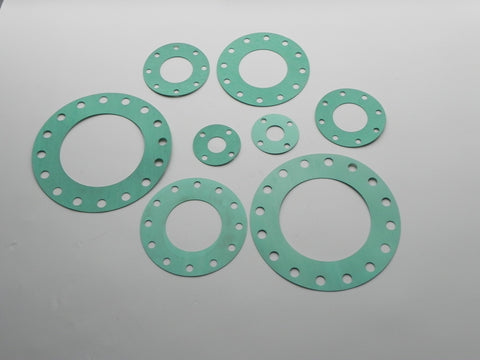

Full Face Gasket; Class 150LW; 1/8" Thick Non-asbestos Material
You need to buy a minimum of $ 100.00 worth of 1/8" Thick Non-asbestos Material before checking out.
Pipe Size | ID | OD | No. of Holes | Hole Dia | BC Dia |
0.125 | 0.69 | 2.5 | 4 | 0.44 | 1.69 |
0.25 | 0.56 | 2.5 | 4 | 0.44 | 1.69 |
0.5 | 0.84 | 3.5 | 4 | 0.62 | 2.38 |
0.75 | 1.06 | 3.88 | 4 | 0.62 | 2.75 |
1 | 1.31 | 4.25 | 4 | 0.62 | 3.12 |
1.25 | 1.66 | 4.62 | 4 | 0.62 | 3.5 |
1.5 | 1.91 | 5 | 4 | 0.62 | 3.88 |
2 | 2.38 | 6 | 4 | 0.75 | 4.75 |
2.5 | 2.88 | 7 | 4 | 0.75 | 5.5 |
3 | 3.5 | 7.5 | 4 | 0.75 | 6 |
4 | 4.5 | 9 | 8 | 0.75 | 7.5 |
5 | 5.56 | 10 | 8 | 0.88 | 8.5 |
6 | 6.62 | 11 | 8 | 0.88 | 9.5 |
8 | 8.62 | 13.6 | 8 | 0.88 | 11.75 |
10 | 10.75 | 16 | 12 | 1 | 14.25 |
12 | 12.75 | 19 | 12 | 1 | 17 |
14 | 14 | 21 | 12 | 1.12 | 18.75 |
16 | 16 | 23.5 | 16 | 1.12 | 21.25 |
18 | 18 | 25 | 16 | 1.25 | 22.75 |
20 | 20 | 27.5 | 20 | 1.25 | 25 |
24 | 24 | 32 | 20 | 1.38 | 29.5 |
