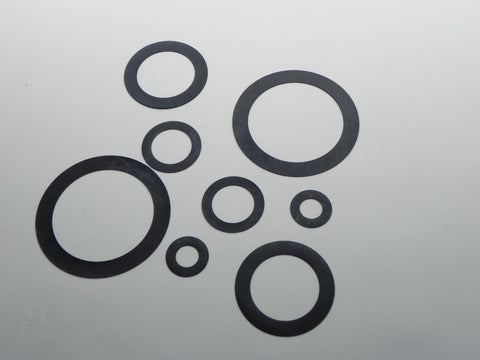

Ring Type Gasket; Class 300; 1/8" Thick Neoprene Material
You need to buy a minimum of $ 100.00 worth of 1/8" Thick Neoprene Material before checking out.
Pipe Size | ID | OD |
0.5 | 0.84 | 2.12 |
0.75 | 1.06 | 2.62 |
1 | 1.31 | 2.88 |
1.25 | 1.66 | 3.25 |
1.5 | 1.91 | 3.75 |
2 | 2.38 | 4.38 |
2.5 | 2.88 | 5.12 |
3 | 3.5 | 5.88 |
3.5 | 4 | 6.5 |
4 | 4.5 | 7.12 |
5 | 5.56 | 8.5 |
6 | 6.62 | 9.88 |
8 | 8.62 | 12.12 |
10 | 10.75 | 14.25 |
12 | 12.75 | 16.62 |
14 | 14 | 19.12 |
16 | 16 | 21.25 |
18 | 18 | 23.5 |
20 | 20 | 25.75 |
24 | 24 | 30.5 |
26 | 26 | 32.88 |
28 | 28 | 35.38 |
30 | 30 | 37.5 |
30 | 30 | 37.5 |
32 | 32 | 39.62 |
34 | 34 | 41.62 |
36 | 36 | 44 |
38 | 38 | 41.5 |
40 | 40 | 43.88 |
42 | 42 | 45.88 |
44 | 44 | 48 |
46 | 46 | 50.12 |
48 | 48 | 52.12 |
50 | 50 | 54.25 |
52 | 52 | 56.25 |
54 | 54 | 58.75 |
56 | 56 | 60.75 |
58 | 58 | 62.75 |
60 | 60 | 64.75 |
22* | 22 | 27.75 |
26B | 26 | 30.38 |
28B | 28 | 32.5 |
30B | 30 | 34.88 |
32B | 32 | 37 |
32B | 32 | 37 |
34B | 34 | 39.12 |
36B | 36 | 41.25 |
36B | 36 | 41.25 |
38B | 38 | 43.25 |
40B | 40 | 45.25 |
42B | 42 | 47.25 |
44B | 44 | 49.25 |
46B | 46 | 51.88 |
48B | 48 | 53.88 |
50B | 50 | 55.88 |
52B | 52 | 57.88 |
54B | 54 | 61.25 |
56B | 56 | 62.75 |
58B | 58 | 65.19 |
60B | 60 | 67.12 |
